What We Offer

Our Products

Precision-engineered HVAC ducting solutions manufactured to international standards.

Product Details

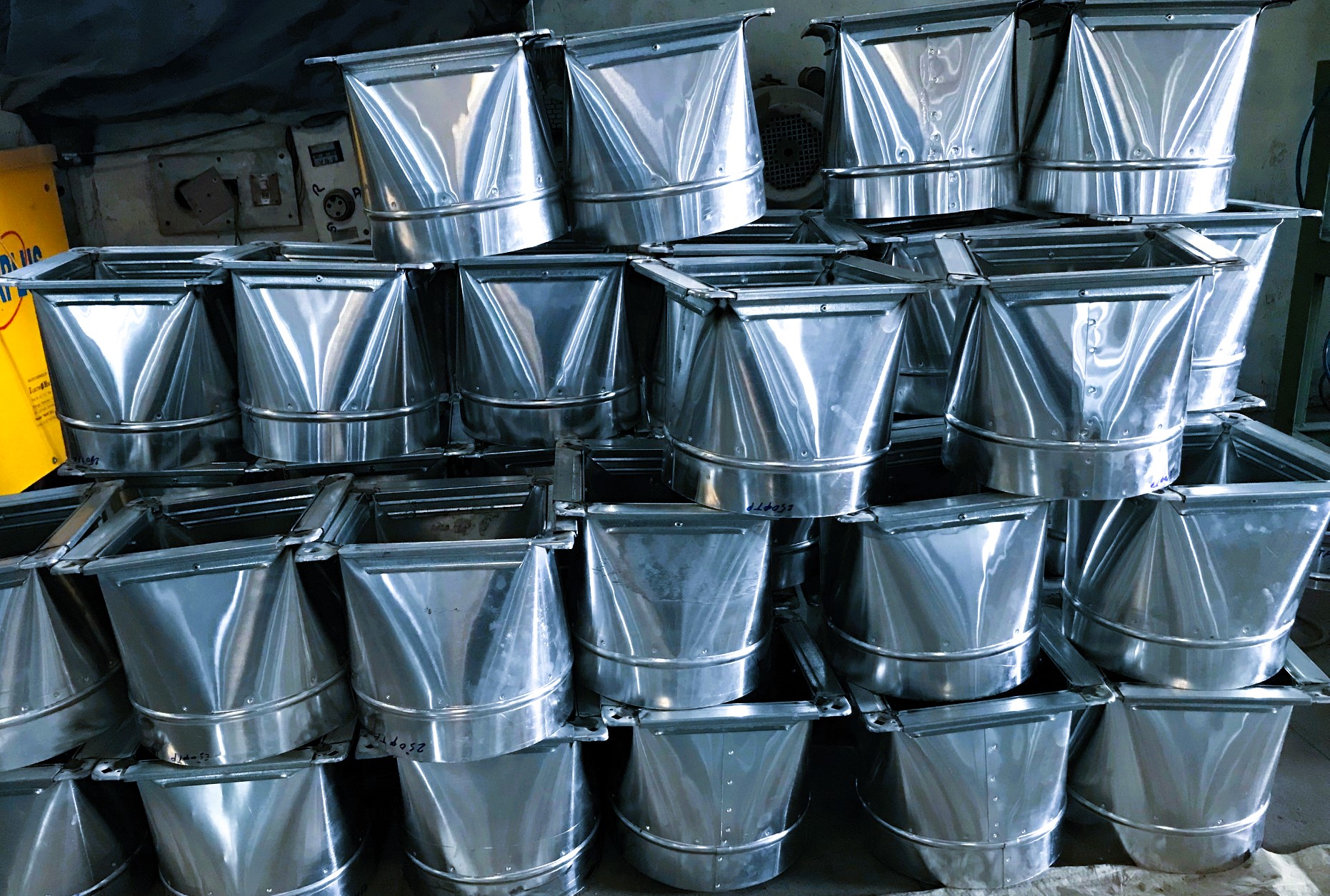

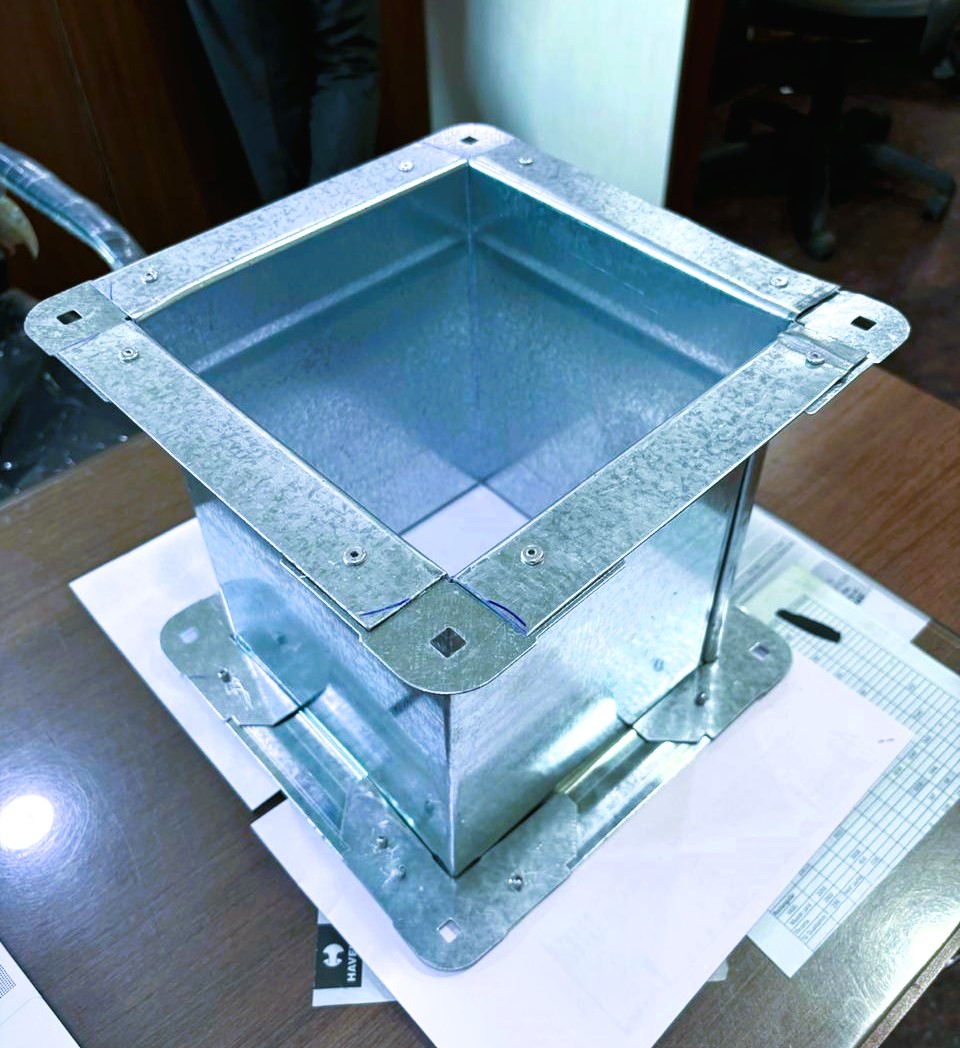

Rectangular Ducts

Rectangular Ducts

Rectangular ducts are hollow rectangular-shaped conduits made of metal for the distribution of conditioned air throughout buildings. Fabricated in various sizes and configurations to meet specific system requirements, making them versatile and widely used in HVAC systems.

Features
Easy Installation
Flexible Design
Better Airflow
Space Saving
Specifications
PropertyValue
Thickness0.5mm to 1.2mm
MaterialGalvanized Steel, Aluminum, Stainless Steel

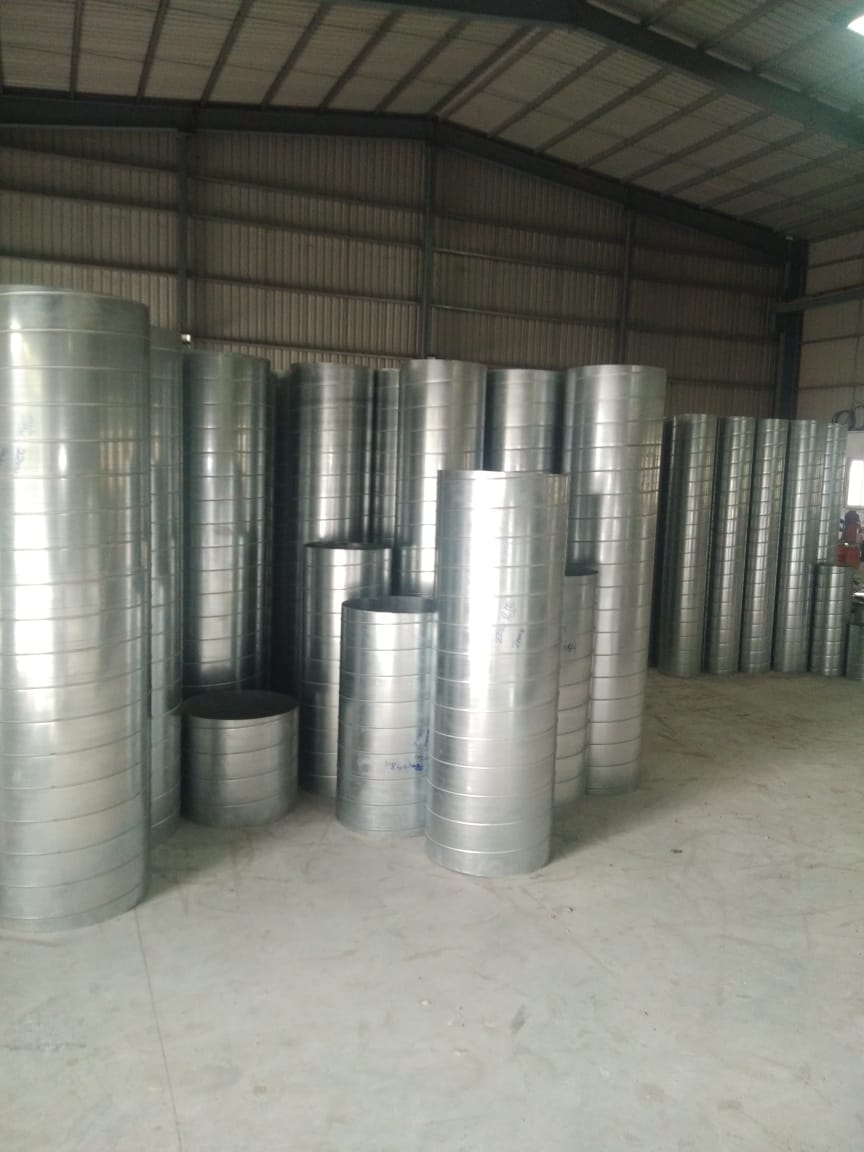

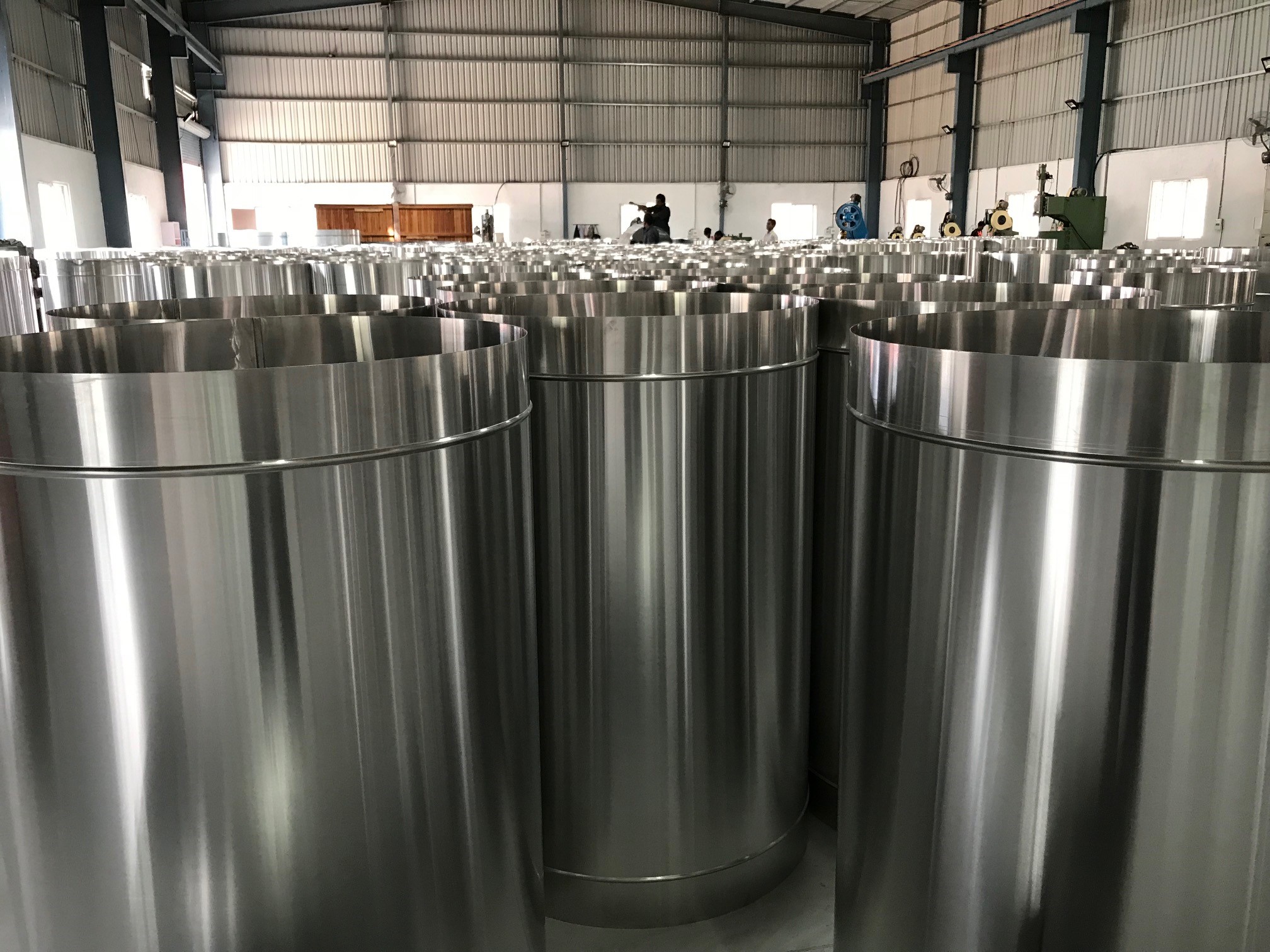

Spiral Round Ducts / Tubes

Spiral Round Ducts

Four-ply Spiral Lock Seam Round Ducts made in our machine offer various advantages over both Rectangular & Plain round ducts by virtue of their unique construction.

Features
Strong & Rigid
More Energy Efficient (Low Friction)
Lower Operation & Maintenance Cost
Noise Free
No Restriction on Length
Dimensional Accuracy (Machine Made)
Faster Installation & Less Cost
Factory Fabricated Ready to Install
Specifications
PropertyValue
MaterialGalvanized steel, Mild steel, Stainless steel, Aluminum
Diameter43mm to 2032mm
Thickness0.6mm to 1.6mm
Thickness by Diameter
DiameterThickness
Up to 24"0.60mm (24G)
25" to 36"0.80mm (22G)
38" to 50"1.00mm (20G)
Above 50"1.20mm (18G)

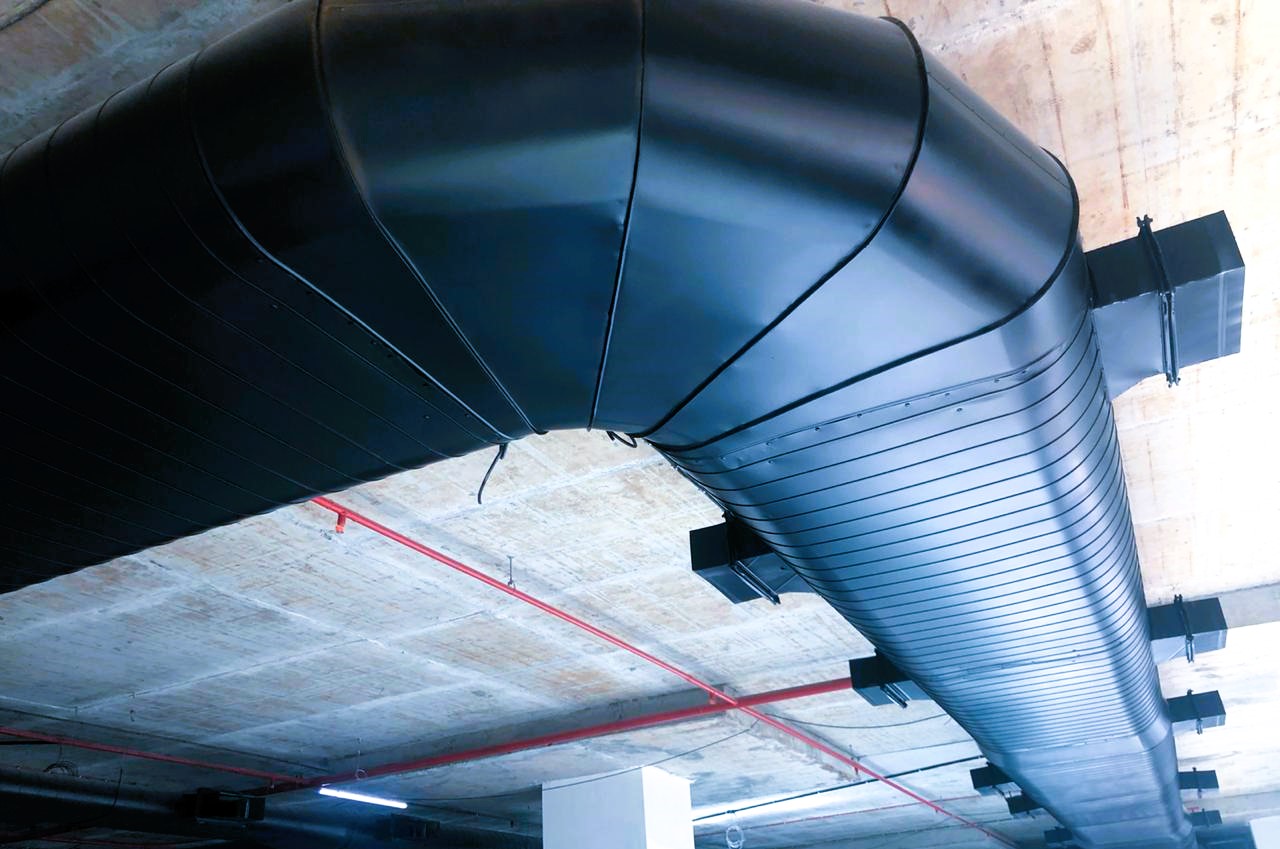

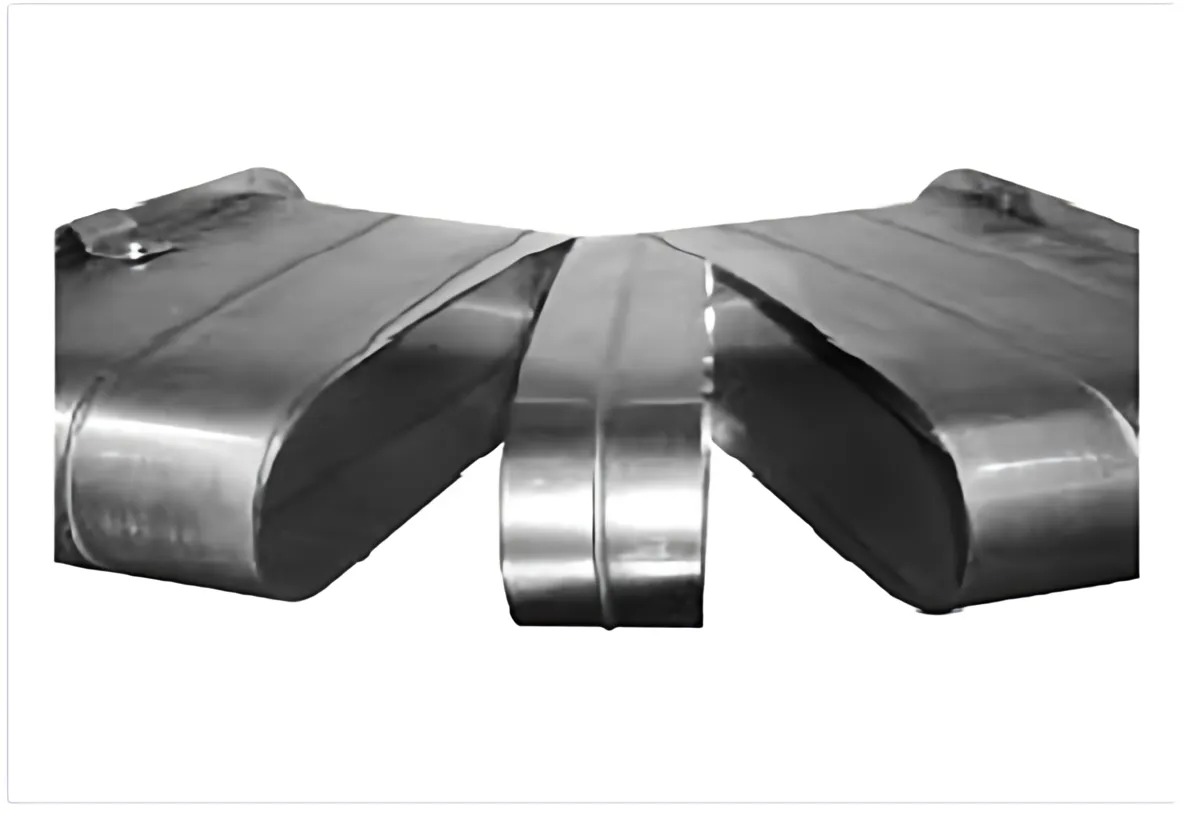

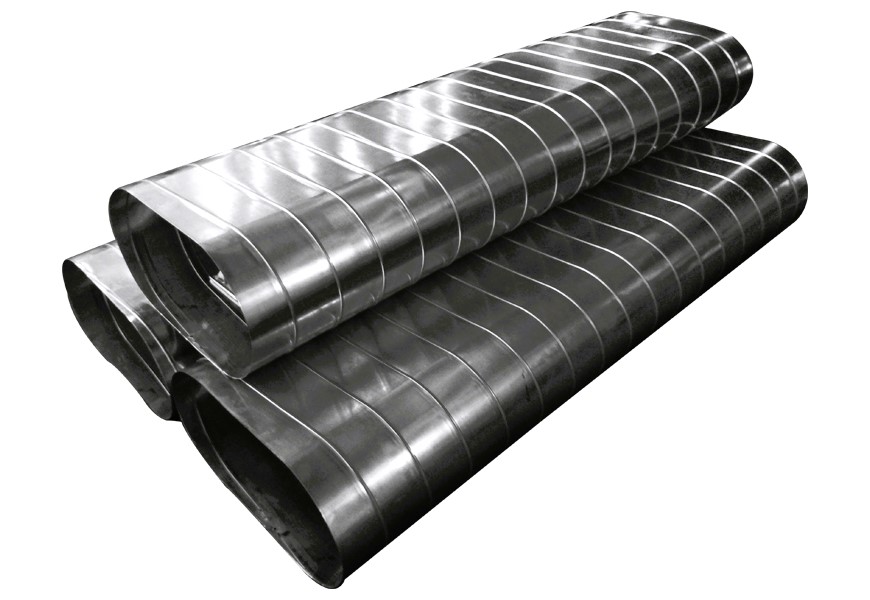

Spiral Oval / Flat Oval Ducts

Flat Oval Ducts

Spiral oval ducts combine the rigidity of spiral construction with an oval shape, ideal for low headroom and restricted space locations. Also known as Flat Oval Duct or Elliptical Duct, they serve as a space-efficient replacement for rectangular ducts.

Features
More Strength (Spiral Reinforced)
Less Reinforcement Required
Low Friction — Smooth Inner Surface
Simplified Duct-to-Duct Joining
Less Joints (Lengths up to 2.5m)
Easy to Handle & Install
Better Aesthetics
Factory Fabricated
Specifications
PropertyValue
MaterialGalvanized steel, Mild steel, Stainless steel, Aluminum
Minor Axis6" to 20"
Major Axis21" to 71"
Thickness0.60mm to 1.0mm
Flat Oval Size Reference Flat Oval Sizes

Duct to Duct Joint Systems

Duct to Duct Joint

A duct-to-duct joint refers to the connection between two sections of ductwork within an HVAC system. Properly sealing these joints is essential to prevent air leakage, maintain system efficiency, and ensure indoor air quality.

Joint Types
Slip Joints — Sections of duct that slide into each other.
Flanged Joints — Sections with flanges that are bolted or screwed together.
S-Lock Joints — Interlocking edges that create a tight seal when pressed together.
Snap-Lock Joints — Sections with snap-in connectors that lock together.
TDC/TDF Joints — Interlocking flanges with integral gaskets for airtight connections.

Value Added Products

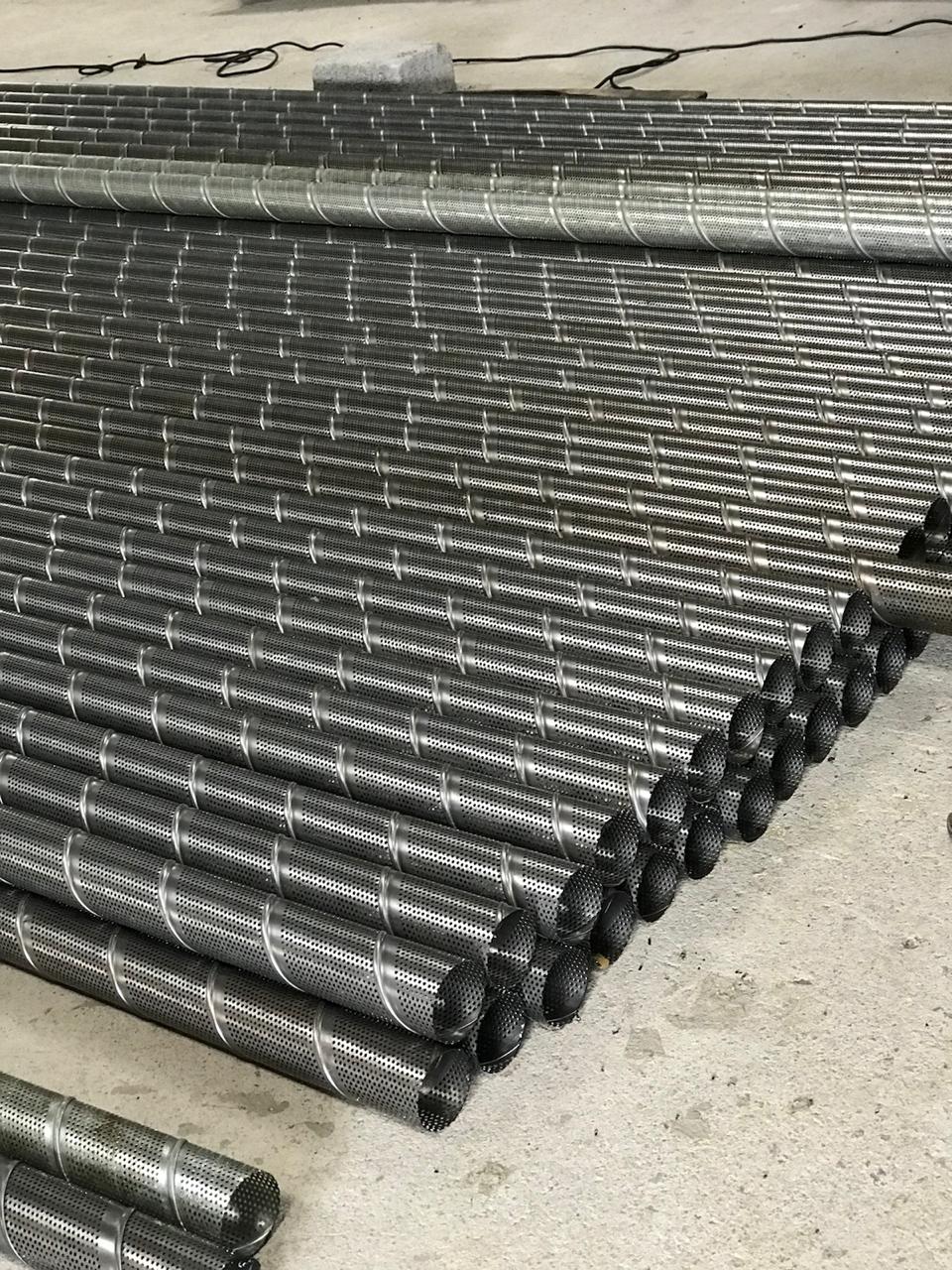

Perforated Spiral Duct and Fitting

Used as Acoustic Ducts in Air Distribution System
Used as Dewatering & Drain Pipes in Underground Mines

Pre-Insulated Double Walled Spiral Round & Flat Oval Ducts and Fittings

Fiberglass Wool/Mineral Wool used as insulating material, sandwiched between outer and inner ducts.
Thermal Insulated: outer Spiral Duct + 25/50mm thick wool + inner protective metal liner.
Acoustic Insulated: outer Spiral Duct + insulating material + internal Perforated or Plain Duct.

Pre-Insulated Single Walled Spiral Round & Flat Oval Ducts and Fittings

Closed Cell/Open Cell Elastomeric Foam (Nitrile Rubber) or Cross-Linked Polyolefin Foam (Thermobreak).
Insulating material can be applied to the inner or outer surface as needed.
Available in Plain Form or Aluminum Clad.

Additional Services

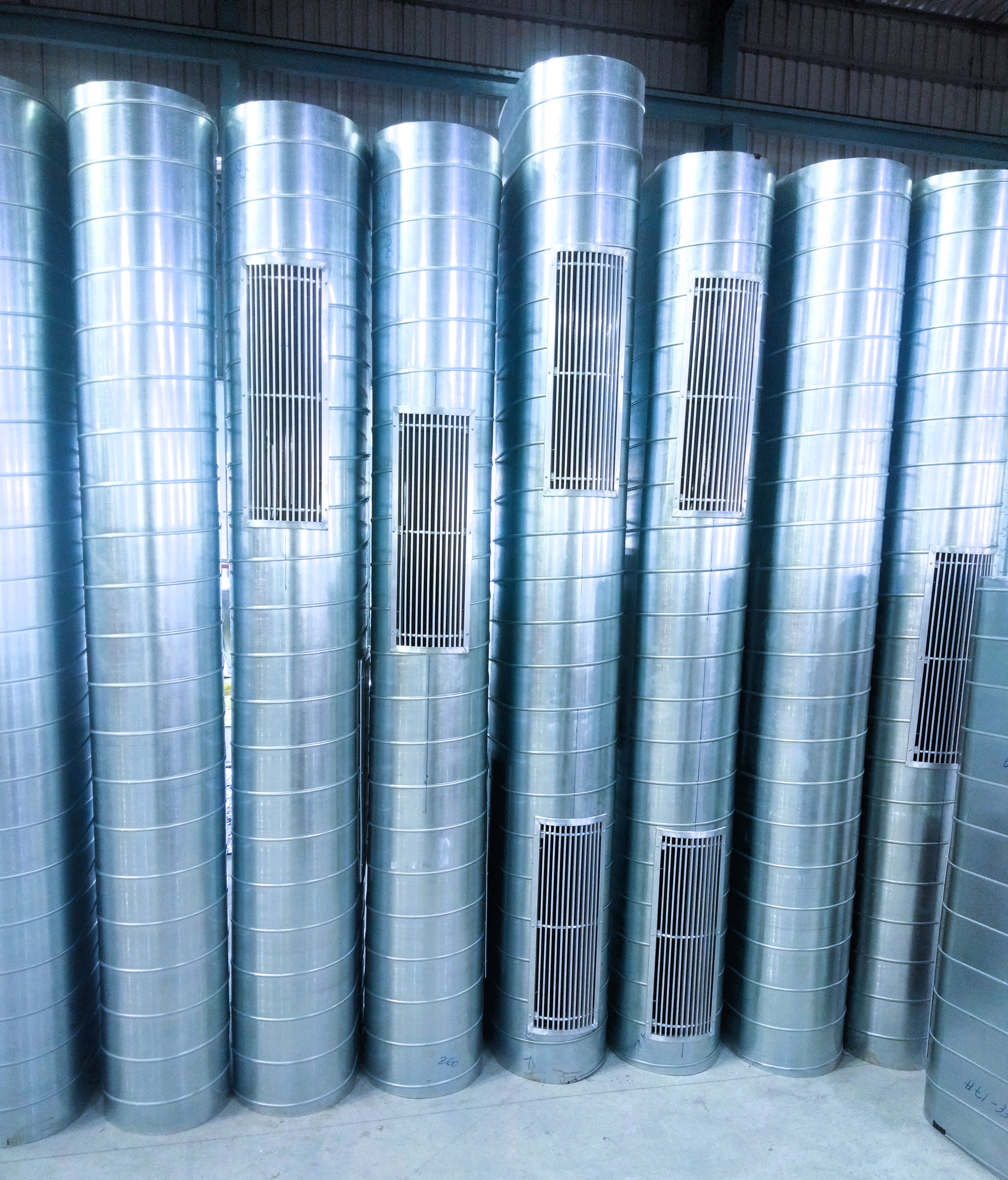

We offer Spray Painted/Powder Coated ducts and fittings. Grill cutting and fixing can be done at the factory.

*** In special cases, Spiral Round Machines can be shifted to site.
